TRIG-MAN 2018
SHOP MATH MADE SIMPLE
TRIG-MAN 2018 provides an easy to use
all purpose math problem solver, and information manager.
All tightly integrated under the
WINDOWS environment.
Consider the advantages of having your machinery's handbook,
calculators, word processor, address book, calendar, mill & lathe drilling, N/C code
output, full featured Spread Sheet with Custom Shop Templates, and more all under one easy
to use software program.
Watch the Trig-Man 2018 Video
TRIG-MAN 2018
NEW FEATURES:
- Taper Calculator,
Finds diameters, angle, and Taper
Per Foot
- Mill face off
cycle
- Dovetail calculator
- Chip thinning calculator
- Chamfer calculator
- Gauge
block calculator
- Belt length Calculator
- Countersink Measurement
- G76 thread cycle generator
- Bar Stock Parts Count
TRIG-MAN 2018 BASIC
FEATURES:
- Handy Triangle Solver (Any Triangle, not just Right Triangles)
- Machinery Tables
- Gear Calculator
- Mill & Lathe Drilling - Bolt Arc/Circles, Linear, Random, Rectangular and Grid
patterns
- MINI-CAM: CAD like geometry creation with free form tool motion and DXF Import/Export
- Thread Specification Calculator (including thread class)
- Speed / Feed Calculator
- Drill Depth Calculator
- Address Book: Home / Work address Phone database with notes,Calendar, Scheduler, To-Do List
- Edit multiple NC-programs / Memos at once
- NC-Code Macros, and Sequence
Number Renumbering
- Mill Pocketing: Square, Rectangle, Polygons and Circular
- Advanced NC-Code generator. Can be user setup for complete output of standard drilling,
rapid, linear, and circular codes, or as a DXF file.
- Full graphical preview / printing.
- Ellipse Drawing / Machining Calculator
- Spline Curve Drawing / Machining Calculator
- Circular Pocketing Roughing / Finishing with Concentric or Spiral Tool Paths
- Sine bar Calculations
- Conversion Calculator (Inch / Metric, TPI / Pitch, Taper Per Foot, Many others)
- Circular Chords
- Polar coordinates
- Speed & Feed Database
- Angular conversions
Screen Shots:
Sine Bar Calculator/Drill Depth Calculator

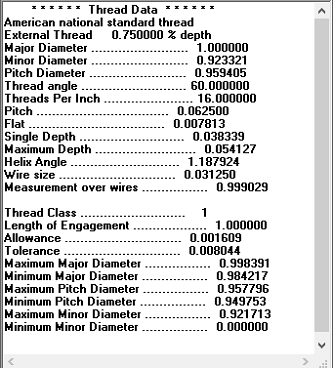

Thread Data Calculator/Sample results

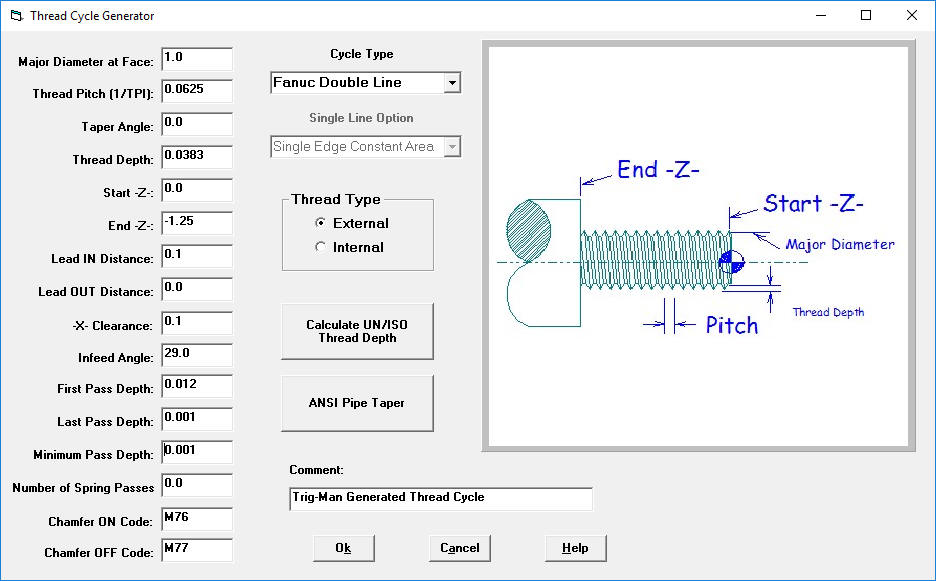

G76 Canned
cycle generator

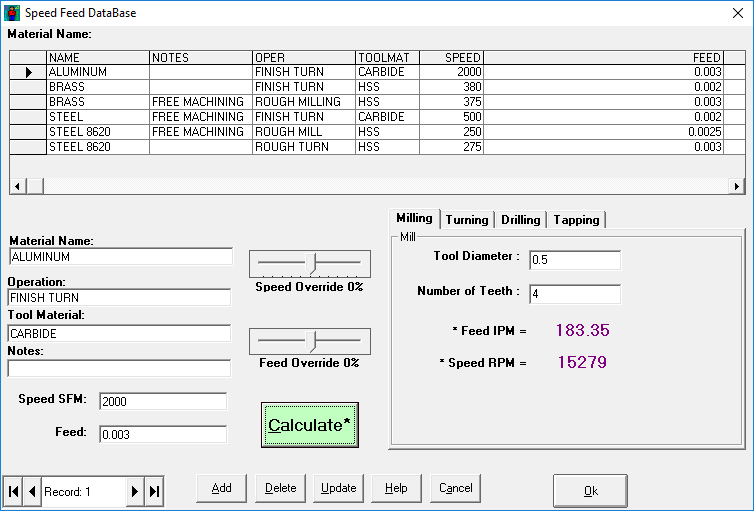

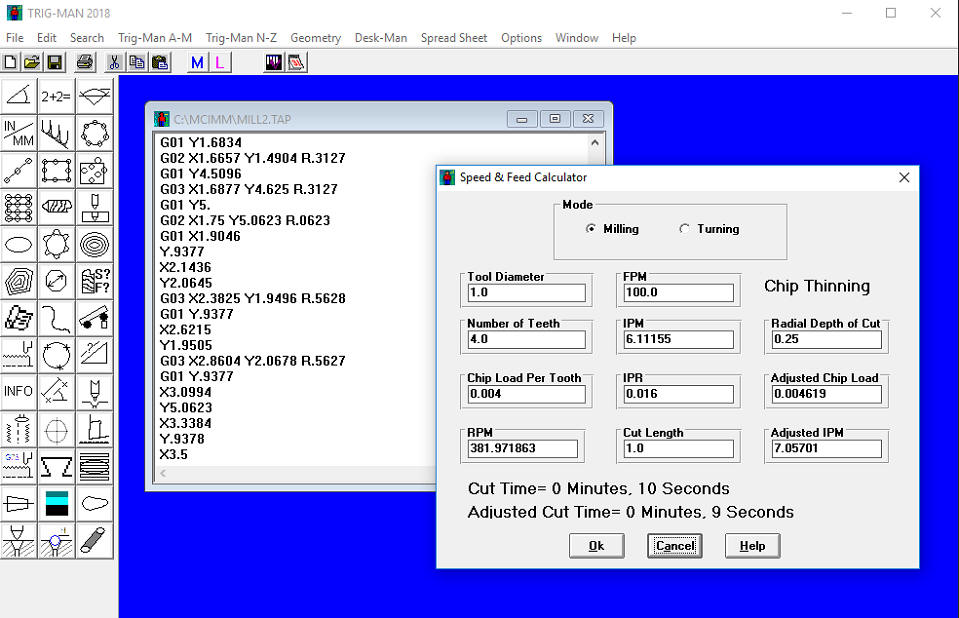

Speed and Feed
Database

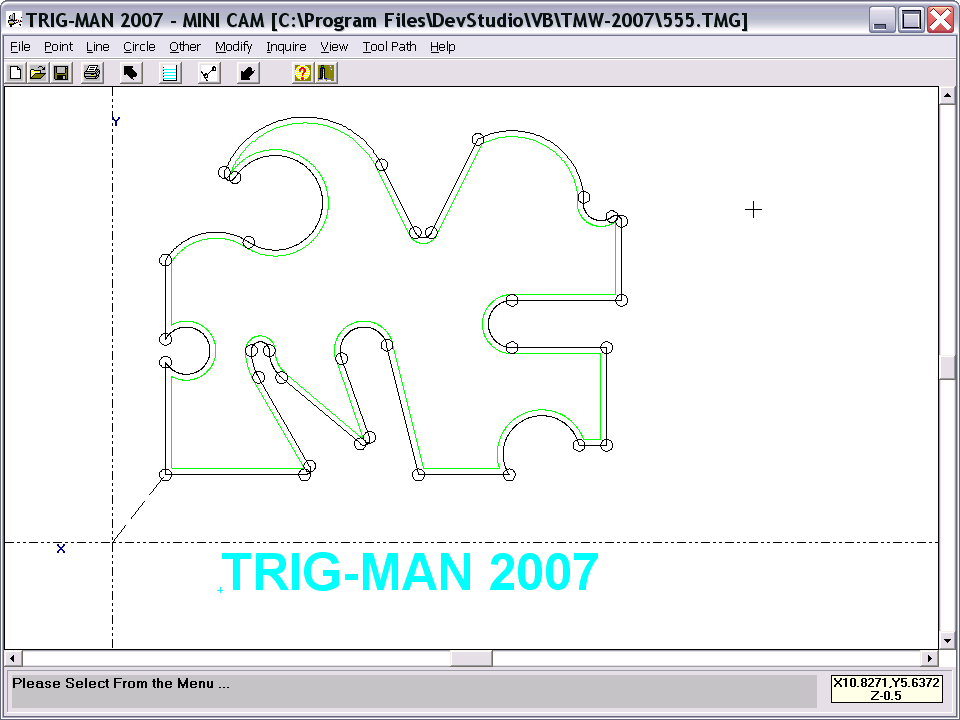

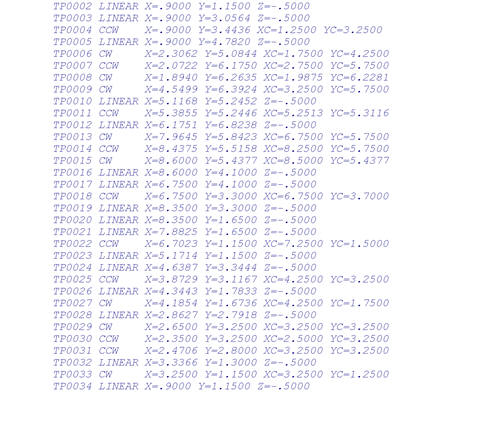

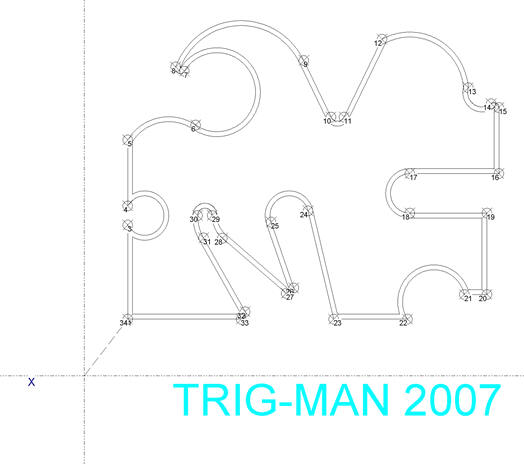

Mini-CAM Free Form NC-Programming
GDP -- Manual Programming aide

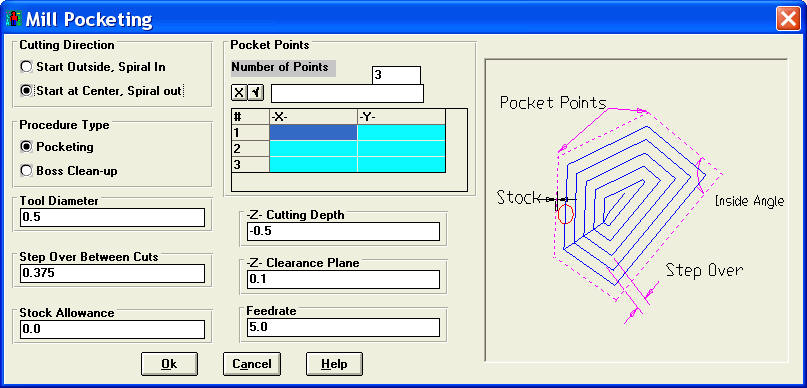

Mill Pocketing

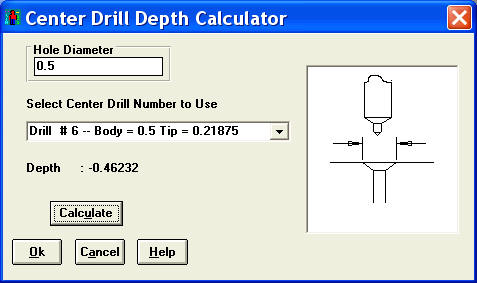

Circular Chord Calculator/Center Drill Depth Calculator

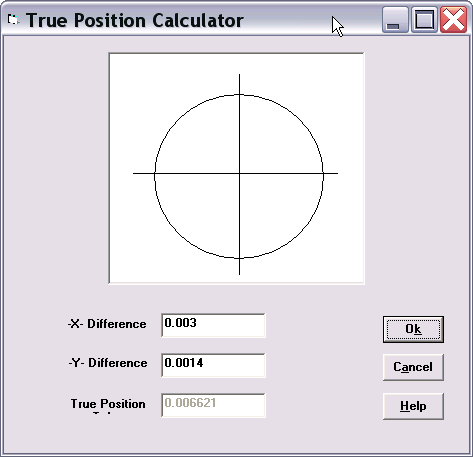

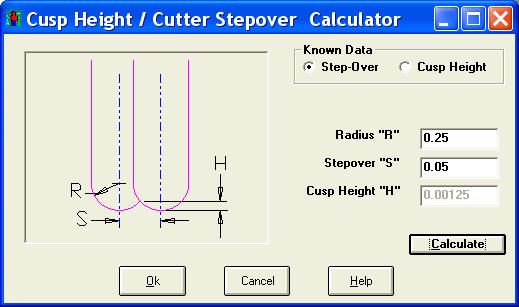

Cusp Height / Cutter Stepover Calculator/True Position Calculations
Trig-Man 2018 Features (Continued):
- Context Sensitive help -- Simply click on the
Help button for detailed help on the specific tool you are using.
- Angle conversions calculator -- Convert easily
between decimal degrees, or degrees, minutes, seconds.
- Circular Chord Calculator
- XY/Polar Coordinates Calculator - Convert
between Polar and Rectangular XY coordinates
- NC-Code Macros -- Store / Retrieve standard
NC-Code block sequences
- New Improved/Expanded Reference Tables --
Easily add your own custom tables/charts
- Speed & Feed Database -- Free form database
for entering / recalling unlimited speed, feed, tool type/material, and
operation information
- Edit Large files -- Several Multi-Megabyte
files may now be edited at the same time.
- Edit Undo/Redo --
- Easy Access Tool Bar for Trig Functions
- Graphics Examples in all Calculators
- Center Drill Depth Calculator
- Speed / Feed Calculator Time Calculation - .
- Cusp Height/Stepover Calculator - .
- Three Point Circle Calculator - .
- Thread Milling Cycle
- Completely New Deskman Utilities - Brand new,
updated calendar, note pad, address book.
- Improved Speed/Feed calculator -- New separate
pages for Mill/Lathe
- Surface Finish Calculator -- For Turning
operations
- True Position Calculator -- Given X/Y error
calculates the true position amount
Mini-CAM
Features:
Draw Text command
-- Add text to your Mini-CAM drawings. Any true type font can
be used
Single Step Box Draw Command --
Draw a complete box/rectangle (including corner radii) in a single step
Import DXF file -- Basic 2D import of DXF files, through
version 2018
GDP Manual Programming Printout --
Draws your part with all tool positions
labeled/numbered along with a table listing the coordinates of each.
Main Toolbar -- Quick access to common
commands
Pop-Up menu --
Clicking the right mouse button give quick access to the
"view" menu.
Recently Used File List --
Quick access to the last four files loaded
Increase symbol table size -- Now stores up to
10,000 entities/tool motions
Line extend one end
Modify - Trimming -- for geometry clean-up
Inquire length -- Determine the length of an entity
Tool path drill selected points/arcs -- Drill large numbers of holes by
mass selecting all points and / or arcs of a specified radius
Ingraver -- Single Font text engraving. Generate Linear, around an arc,
and mirrored text
Cut-all command -- Cuts all defined entities. Perfect for engraving logos
Spread Sheet
TRIG-MAN 2018 Includes a powerful Spread Sheet Program
- Highly MICROSOFT EXCELŽ Compatible, reads and writes Excel files.
- Tool Bars with built in "Tool Tips"
- Supports over 130 Functions
- AutoSum Function
- Print preview
- Save Files in HTML format for publishing on the Internet

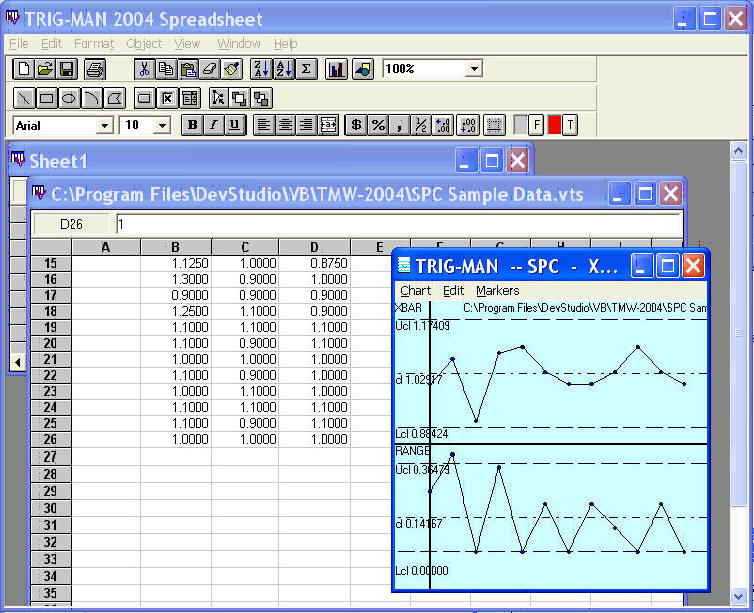

- SPC - XBAR & Range Chart
- Built in Graphing Capability with over thirty 2D & 3D chart types !
Includes sample templates
for many shop related tasks, such as Job-Costing, Tool Calibration Report, Weekly Time
Sheet, Expense report, and SPC data.
Requirements
- WINDOWS XP/7/8/10
- Same memory/CPU
requirements as Windows
- Display Resolution 1024x768
Minimum
- 50 Meg Disk Space
- Mouse or Other Pointing Device
