Upgrades are Available

Download the help file for evaluation

TRIG-MAN 2009 BASIC FEATURES:

• Handy Triangle Solver (Any Triangle, not just Right Triangles)
• Machinery's Handbook Tables
• Gear Calculator
• Mill & Lathe Drilling - Bolt Arc/Circles, Linear, Random, Rectangular and Grid patterns
• MINI-CAM: CAD like geometry creation with free form tool motion and DXF Import/Export
• Thread Specification Calculator (including thread class)

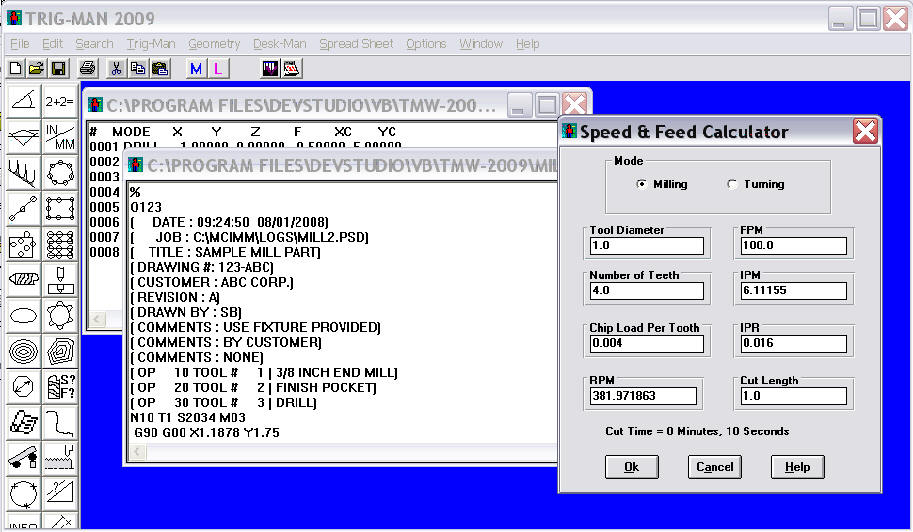

• Speed / Feed Calculator
• Drill Depth Calculator
• Address Book: Home / Work address Phone database with notes
• Edit multiple NC-programs / Memos at once
• NC-Code Macros, and Sequence Renumbering
• Calendar, Scheduler, To-Do List
• Mill Pocketing: Square, Rectangle, Polygons and Circular
• Advanced NC-Code generator. Can be user setup for complete output of standard drilling, rapid, linear, and circular codes, or as a DXF file. Full graphical preview / printing.
• Ellipse Drawing / Machining Calculator
• Spline Curve Drawing / Machining Calculator
• Circular Pocketing Roughing / Finishing with Concentric or Spiral Tool Paths
• Sine bar Calculations
• Conversion Calculator (Inch / Metric, TPI / Pitch, Taper Per Foot, Many others)
• Circular Chords
• Polar coordinates
• Speed & Feed Database
• Angular conversions

 TRIG-MAN 2009 Features (Continued)

Spread Sheet*

• Highly MICROSOFT EXCELŽ Compatible, reads and writes Excel files.
• Tool Bars with built in "Tool Tips"
• Supports over 130 Functions
• AutoSum Function
• Print preview
• Save Files in HTML format for publishing on the Internet
• SPC - XBAR & Range Chart
• Built in Graphing Capability with over thirty 2D & 3D chart types !
• Includes sample templates for many shop related tasks, such as Job-Costing, Tool Calibration Report, Weekly Time Sheet, Expense report, and SPC data.





*Not Available under 64bit Versions of Windows

Requires

• WINDOWS XP/Vista/7/8/10
• 1500 MHz CPU
• 512 Meg Ram (4096 Vista/7/8/10)
• Display Resolution 1024x768 Minimum
• 50 Meg Disk Space
• Mouse or Other Pointing Device

Screen Shots:

Sine Bar Calculator



* * * * * * Thread Data Sample * * * * * *
American national standard thread
External Thread 0.75000 % depth
Major Diameter .................... 1.00000
Minor Diameter .................... 0.92332
Pitch Diameter .................... 0.95941
Thread angle ...................... 60.00000
Threads Per Inch .................. 16.00000
Pitch ............................. 0.06250
Flat .............................. 0.00781
Single Depth ...................... 0.03834
Maximum Depth ..................... 0.05413
Helix Angle ....................... 1.18792
Wire size ......................... 0.03125
Measurement over wires ............ 0.99903

Thread Class ...................... 1
Maximum Major Diameter ............ 0.99839
Minimum Major Diameter ............ 0.98422
Maximum Pitch Diameter ............ 0.95780
Minimum Pitch Diameter ............ 0.94975
Maximum Minor Diameter ............ 0.92171
Minimum Minor Diameter ............ 0.00000

Thread Data Calculator/Sample results

Drill Depth Calculator

Mini-CAM Free Form NC-Programming

GDP -- Manual Programming aide

Mill Pocketing

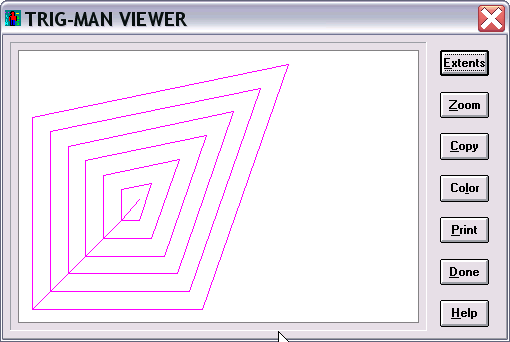

Mill Pocketing tool path

Circular Chord Calculator

Center Drill Depth Calculator

Cusp Height / Cutter Stepover Calculator

True Position Calculations

General:

Context Sensitive help -- Simply click on the Help button for detailed help on the specific tool you are using.
Angle conversions calculator -- Convert easily between decimal degrees, or degrees, minutes, seconds.
More conversions (from 3 to 8)
Circular Chord Calculator
XY/Polar Coordinates Calculator - Convert between Polar and Rectangular XY coordinates
NC-Code Macros -- Store / Retrieve standard NC-Code block sequences
Resequence -- Renumber or remove sequence numbers from you NC Programs
New Improved/Expanded Reference Tables -- Easily add your own custom tables/charts

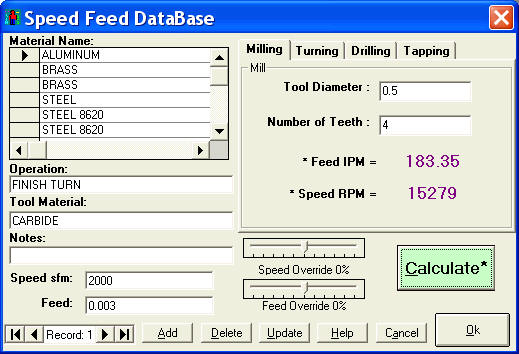

Speed & Feed Database -- Free form database for entering / recalling unlimited speed, feed, tool type/material, and operation information
Edit Large files -- Several Multi-Megabyte files may now be edited at the same time.
Edit Undo/Redo --
Easy Access Tool Bar for Trig Functions - .
Graphics Examples in all Calculators --.
Center Drill Depth Calculator -- .
Speed / Feed Calculator Time Calculation - .
Cusp Height/Stepover  Calculator - .
Three Point Circle Calculator - .
Thread Milling Cycle
Completely New Deskman Utilities - Brand new, updated calendar, note pad, address book.
Windows XP Compatibility - .
Improved Speed/Feed calculator -- New separate pages for Mill/Lathe
Surface Finish Calculator --  For Turning operations
True Position Calculator --  Given X/Y error calculates the true position amount

Mini-CAM Features:

Draw Text command -- Add text to your Mini-CAM drawings. Any true type font can be used
Single Step Box Draw Command -- Draw a complete box/rectangle (including corner radii) in a single step
Import DXF file -- Basic 2D import of DXF files, through version 2008
GDP Manual Programming Printout --  Draws your part with all tool positions labeled/numbered along with a table listing the coordinates of each.
Main Toolbar -- Quick access to common commands
Pop-Up menu -- Clicking the right mouse button give quick access to the "view" menu.
Recently Used File List -- Quick access to the last four files loaded
Increase symbol table size -- Now stores up to 10,000 entities/tool motions
Line extend one end
Modify - Trimming -- for geometry clean-up
Inquire length -- Determine the length of an entity
Tool path drill selected points/arcs -- Drill large numbers of holes by mass selecting all points and / or arcs of a specified radius
Ingraver -- Single Font text engraving. Generate Linear, around an arc, and mirrored text
Cut-all command -- Cuts all defined entities. Perfect for engraving logos


TRIG-MAN 2009
